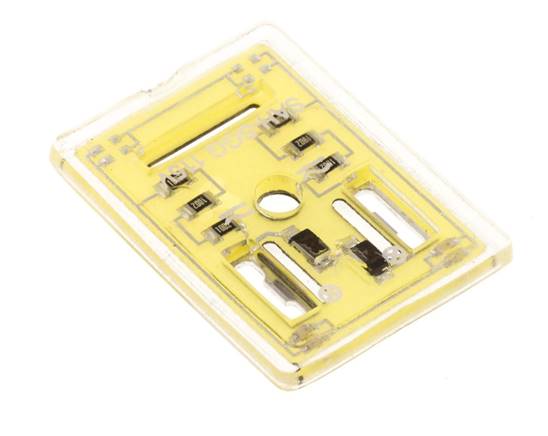

Illuminated seal, 115 V AC/DC, size 1 (industry standard B)
Item number:
LD ST01 115V
Item description
Application:
The glowing seal is inserted between the standard connector and solenoid in place of the usual seal to display the switching status of the valve. It is equipped with reverse polarity protection and a protection circuit with a green LED. The LED is positioned right opposite the safety contact.
Voltage tolerance:
± 10 %
The glowing seal is inserted between the standard connector and solenoid in place of the usual seal to display the switching status of the valve. It is equipped with reverse polarity protection and a protection circuit with a green LED. The LED is positioned right opposite the safety contact.
Voltage tolerance:
± 10 %
Properties
| Voltage | 115 V AC/DC |
| suitable for plug size | 1 (industry standard B) |
| Dimensions [mm] | 21,0 x 28,5 x 2,1 |
Further information on LDST01115V
| Weight | 1,6 g / pcs |
| GTIN | 4050571462864 |
| Customs duty number | 85312020 |
Documents
- Catalogue page Atlas 9 (Page 895) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*without protection circuit
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
