Item description
Application:

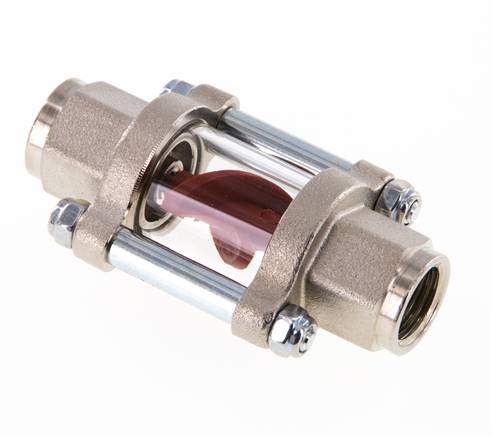

Flow displays visualise a medium flow by rotating the easily visible wheel on the inside of the instrument. The rotational speed of the wheel allows a rough estimate of the flow speed.
Materials:
Body: Nickel-plated brass, impeller: PA 66, inspection glass Pyrex
Temperature range:
0 to +90 °C
Installation position:
arbitrary
Direction of flow:
in any direction, at will
Media:
aqueous, non-aggressive liquids
Flow displays visualise a medium flow by rotating the easily visible wheel on the inside of the instrument. The rotational speed of the wheel allows a rough estimate of the flow speed.
Materials:
Body: Nickel-plated brass, impeller: PA 66, inspection glass Pyrex
Temperature range:
0 to +90 °C
Installation position:
arbitrary
Direction of flow:
in any direction, at will
Media:
aqueous, non-aggressive liquids
Properties
| Version | Flow display |
| Flow (water) [l/min] | 0,6 - 3 |
| Thread | G 1/4" |
| L [mm] | 64 |
| B [mm] | 37 |
| Operating pressure [bar] | 25 |
| Replacement inspection glass | DMA 14 REP |
Further information on DMA14MSV
| Weight | 95 g / pcs |
| GTIN | 4050571250775 |
| Customs duty number | 90262080 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 692) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
