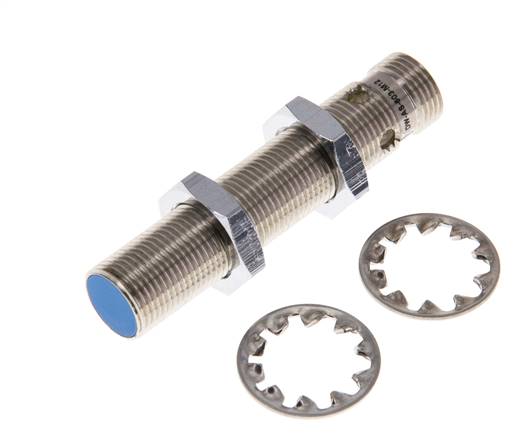

Ind. proximity switch, M 12, SN2 - M 12 plug (A-coded, 4-pole)
Item number:
SIN M12-B-2 S12 L
Item description
Materials:
Body: nickel-plated / chrome-plated brass or stainless steel, sensor surface: plastic
Temperature range:
-25 to +70 °C
Protection class:
IP 67
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link compatible,
•outstanding value
Body: nickel-plated / chrome-plated brass or stainless steel, sensor surface: plastic
Temperature range:
-25 to +70 °C
Protection class:
IP 67
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link compatible,
•outstanding value
Properties
| Connection | M 12 plug (A-coded, 4-pole) |
| Version | flush installable, NO contact |
| Design | M 12 |
| Safety distance (SN) [mm] | 2 |
| G | M 12x1 |
| L2 [mm] | 60 |
| L3 [mm] | 11,0 |
| H1 [mm] | 6,0 |
| B1 [mm] | 8,0 |
| B2 [mm] | 16 |
Further information on SINM12-B-2S12L
| Weight | 37 g / pcs |
| GTIN | 4050571889906 |
| Customs duty number | 85365019 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 888) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
