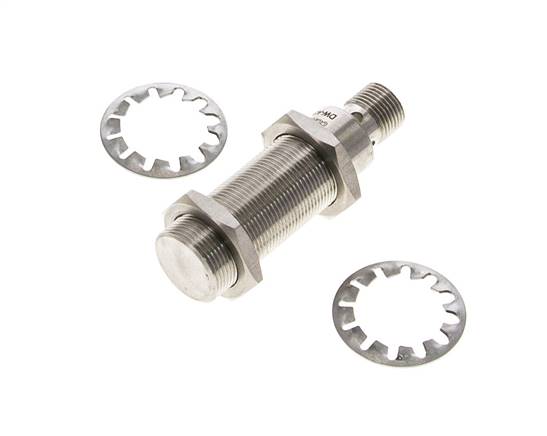

Ind. proximity switch, M 12, SN3 - M 12 plug (A-coded, 4-pole)
Item number:
SIN M12-B-3 S12 ES
Item description
Materials:
Housing and sensor surface (made of one piece): Stainless steel 1.4305
Temperature range:
-25°C to max. +85°C (M 12 with 3 mm safety distance: -25°C to max. +70°C)
Protection class:
IP 68 / IP 69
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link capable,
•extremely durable,
•good chemical resistance,
•pressure resistant up to 60 bar / 80 bar
Housing and sensor surface (made of one piece): Stainless steel 1.4305
Temperature range:
-25°C to max. +85°C (M 12 with 3 mm safety distance: -25°C to max. +70°C)
Protection class:
IP 68 / IP 69
Operating voltage:
10 to 30 V (DC)
Control output (PNP):
1 switching output (normally open), max. 200 mA
Switching capacity:
max. 6 W
Switching status indicator:
LED, orange
Protection circuit:
Short-circuit protection, induction protection, reverse polarity protection
Advantages:
•IO link capable,
•extremely durable,
•good chemical resistance,
•pressure resistant up to 60 bar / 80 bar
Properties
| Connection | M 12 plug (A-coded, 4-pole) |
| Version | flush installable, NO contact |
| burst-strength/compressive strength [bar] | 80 |
| Design | M 12 |
| Safety distance (SN) [mm] | 3 |
| G | M 12x1 |
| L2 [mm] | 60 |
| L3 [mm] | 19,0 |
| H1 [mm] | 9 |
| B1 [mm] | 10 |
| B2 [mm] | 25 |
| Temperature range [°C] | -25 to +70 |
Further information on SINM12-B-3S12ES
| Weight | 34 g / pcs |
| GTIN | 4050571889920 |
| Customs duty number | 85365019 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 889) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
