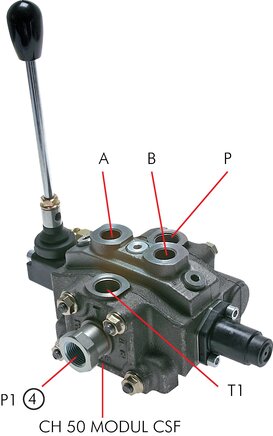

Item description
Suitable:
These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.
The basic components can be easily converted from spring return to detent or locking of the pressureless circulation with the components marked as retrofit kits.
Materials:
Body: steel and plastic, internal parts: steel, seal: plastic / NBR
Temperature range:
-30 to +90 °C
Media:
Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)
Operating pressure:
Inlet pressure: 0 to 320 bar, return pressure max. 35 bar (pressure relief valve adjustable 40 - 320 bar)

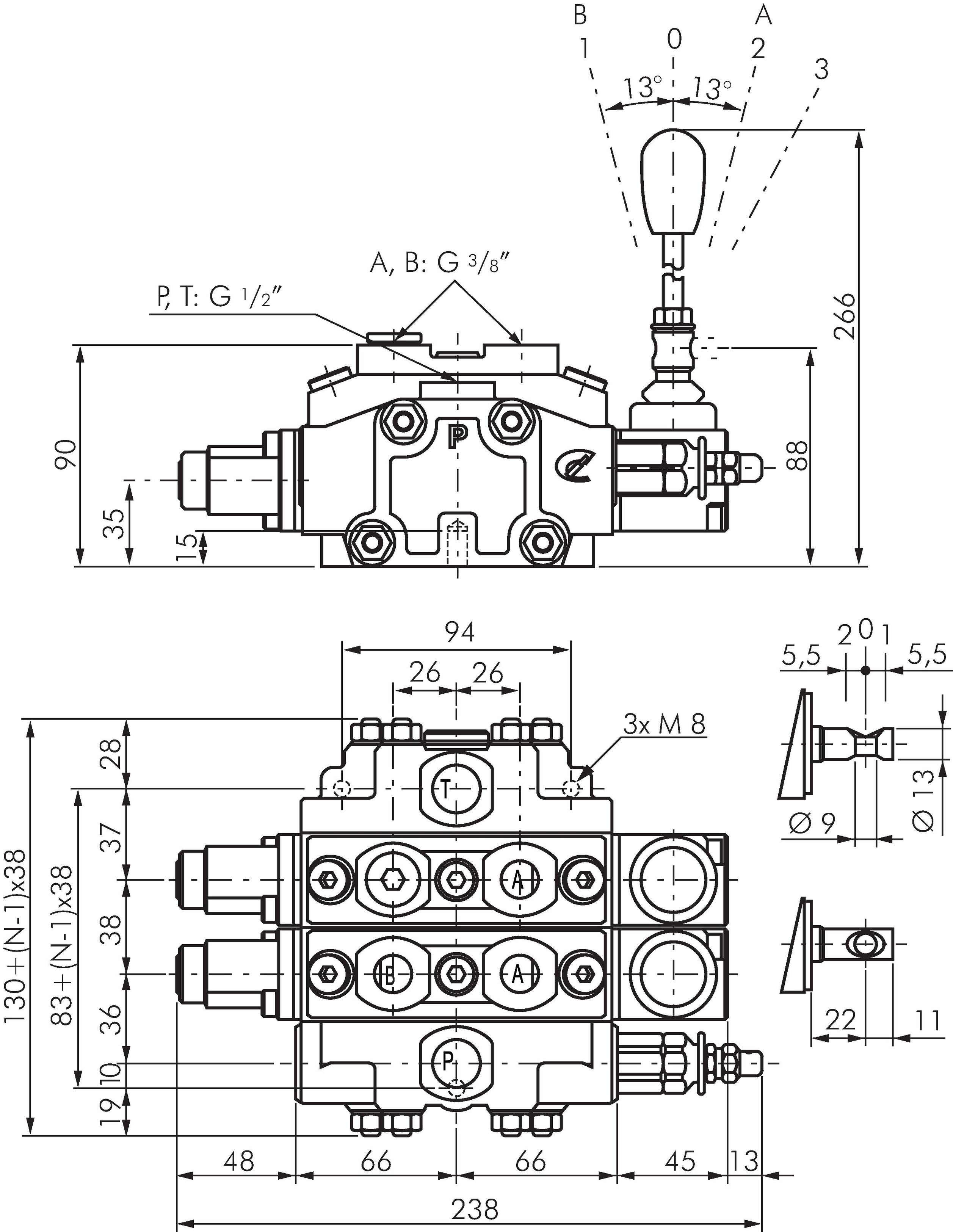

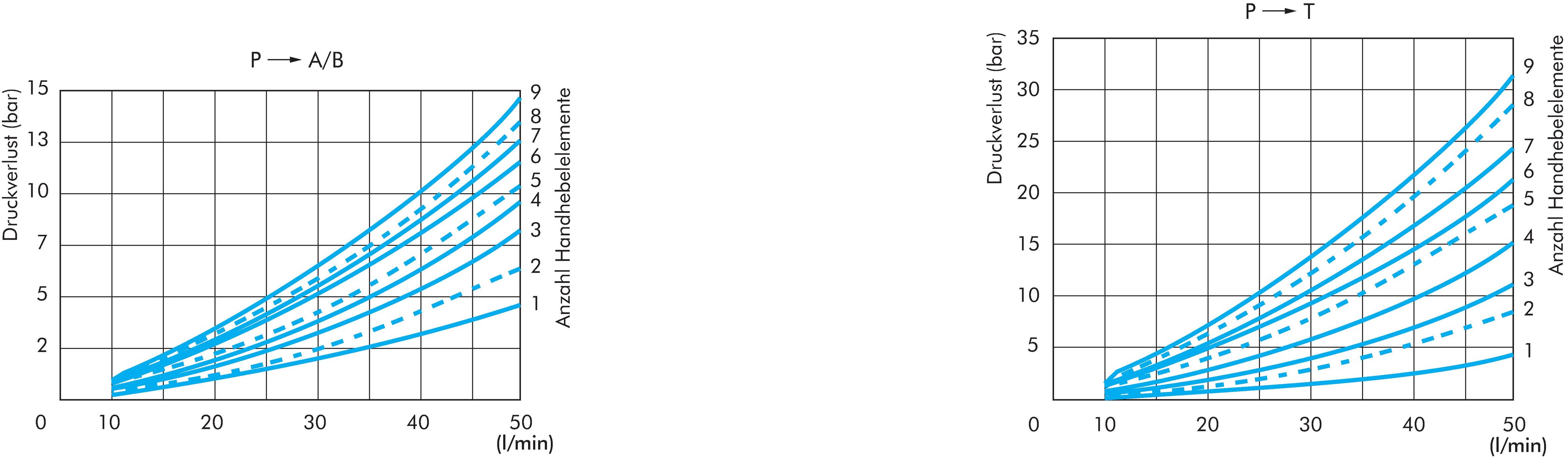

Nominal flow:
1 - 2 elements: max. 50 l/min, 3 - 5 elements: max. 45 l/min, 6 - 7 elements: max. 40 l/min, 8 - 9 elements: max. 35 l/min
These valves are used in mobile and industrial applications. Compact control blocks with up to 9 consumers such as hydraulic cylinders and hydraulic motors can be assembled using the modular system. In the basic components the zero position of the valve is always designed as a no-pressure cycle from P to T. The input element has a pressure limiting valve with a settings range of 40 - 320 bar. As a standard, the hand lever elements are provided with a spring return to the centre position.
The basic components can be easily converted from spring return to detent or locking of the pressureless circulation with the components marked as retrofit kits.
Materials:
Body: steel and plastic, internal parts: steel, seal: plastic / NBR
Temperature range:
-30 to +90 °C
Media:
Hydraulic oils on the basis of mineral oil (viscosity range: 10 - 300 mm²/s)
Operating pressure:
Inlet pressure: 0 to 320 bar, return pressure max. 35 bar (pressure relief valve adjustable 40 - 320 bar)
Nominal flow:
1 - 2 elements: max. 50 l/min, 3 - 5 elements: max. 45 l/min, 6 - 7 elements: max. 40 l/min, 8 - 9 elements: max. 35 l/min
Properties

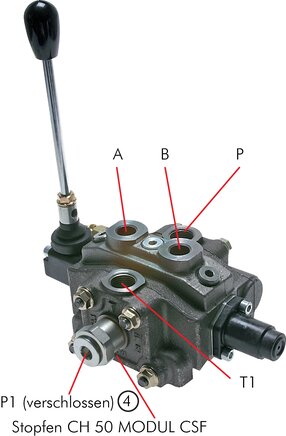

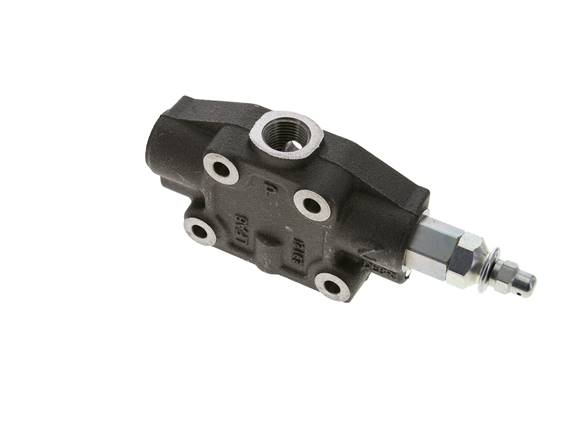

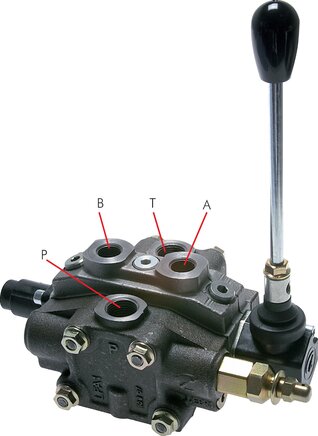

| Version | input element |

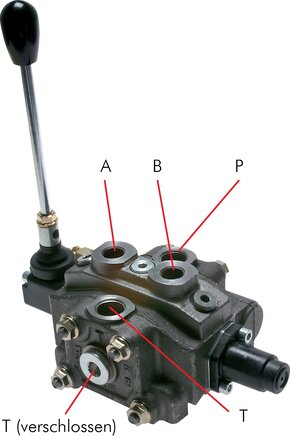

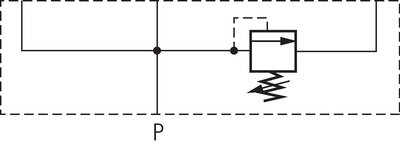

| Description / function | with pressure limiting valve |
Further information on CH50ELEMENTE
| Weight | 1,7 kg / pcs |
| GTIN | 4050571232436 |
| Customs duty number | 84122120 |
Documents
- Catalogue page Atlas 9 (Page 818_819) (PDF)
- 3D CAD file (surface model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
