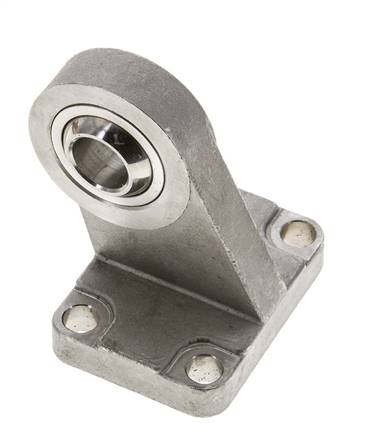

ISO 15552-90° loop strap swivel mounting 63 mm, 1.4401
Item number:
TF 63 ES
Item description
Warning:
Only use FFQ bolts to connect to TQ types!
Only use FFQ bolts to connect to TQ types!
Properties
| Material | 1.4401 |
| for piston diameter [mm] | 63 |
| Q [mm] | 9,0 |
| BG [mm] | 35 |
| BH [mm] | 50 |
| BI [mm] | 37 |
| BL [mm] | 12 |
| BM [mm] | 50 |
| BN [mm] | 52 |
| BO [mm] | 67 |
| EN [mm] | 21 |
| BQ [mm] | 15,0 |
| D [mm] | 16 |
| H [mm] | 10,5 |
Further information on TF63ES
| Weight | 550 g / pcs |
| GTIN | 4050571694319 |
| Customs duty number | 73269098 |
Documents
- Catalogue page Atlas 9 (Page 841) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
