Item description
Scope of delivery:

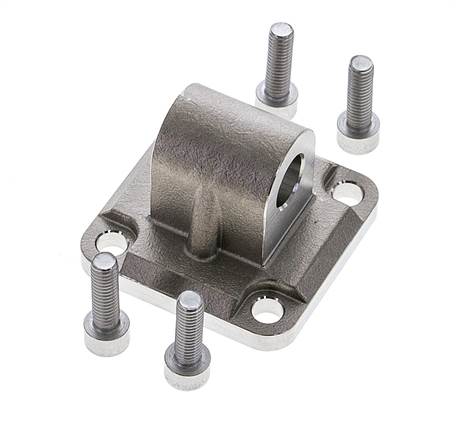

1 pc swivel fixation, incl. 4 fastening screws
1 pc swivel fixation, incl. 4 fastening screws
Properties
| Material | 1.4401 |
| for piston diameter [mm] | 40 |
| B [mm] | 28 |
| D [mm] | 12 |
| F [mm] | 25 |
| L [mm] | 160 |
| M [mm] | 55 |
| N [mm] | 38,0 |
Further information on TG40ES
| Weight | 260 g / pcs |
| GTIN | 4050571694920 |
| Customs duty number | 73269098 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 840) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
