Item description
Scope of delivery:
Plate without flange seal and fastening screws
Plate without flange seal and fastening screws
Properties

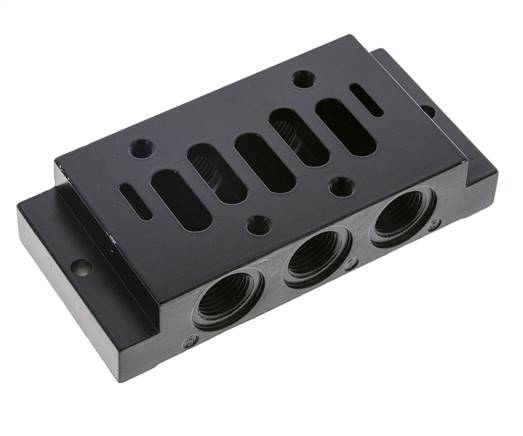

| Description | Single connection plate, side connection |
| ISO form | A |
| Thread | 3x G 1/2" |
| Thread exhaust air (2x) | G 1/2" |
| Thread, pilot supply (2x) | G 1/8" |
Further information on MI031
| Weight | 350 g / pcs |
| GTIN | 4050571492083 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 757) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
