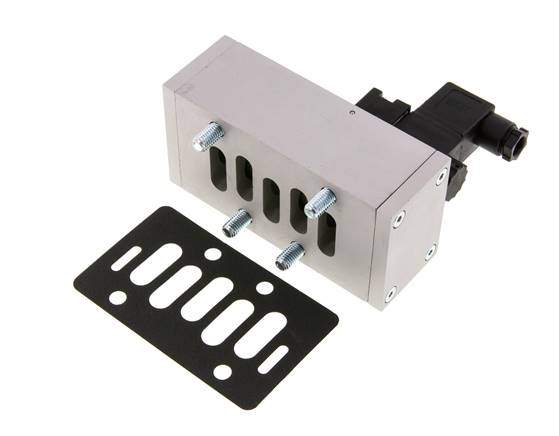

ISO valve (size 3), 5/2-way Air spring return, 12 V DC
Item number:
MI 03510HN 12V=
Item description
Materials:
Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Body: anodized aluminium, internal parts: stainless steel and brass, seal: plastic, NBR
Temperature range:
-10 to +70 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Protection class:
IP 65
Structural shape solenoid coil:
N (plug size 1)
Scope of delivery:
Valve including flange gasket, fixing screws, coil(s) and plug.
Properties
| Control voltage | 12 V DC |
| Switching | 5/2-way |
| function | Air spring return |
| ISO size | 3 |
| flow [l/min] | 4150 |
| Operating pressure [bar] | 2 - 10 |
| Power consumption (DC) [W] | 4,2 |
| Spare solenoid coil | MAG N 12V= |
Further information on MI03510HN12V=
| GTIN | 4050571492113 |
| Customs duty number | 84812090 |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 757) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
