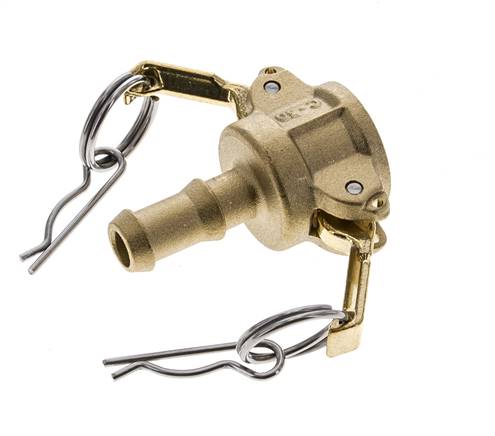

Kamlock coupling (C) 13 (1/2")mm hose, Brass
{{ $t('shop.all.artikelnummer') }}:
KLDS 13 MS
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10°C to +80°C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
Stainless steel type:
Body: stainless steel (1.4408), seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: stainless steel
Polypropylene type*:
Bodies: Polypropylene, Seal: EPDM (11/4" plug Ø 45 mm): NBR, handle: Stainless steel, ring / safety pin / if needed. chain: Stainless steel
Type Brass:
Body: brass, seal: NBR, handle: brass, ring / safety pin / chain, if needed: stainless steel
Aluminium type:
Body: aluminium, seal: NBR, handle: stainless steel, ring / safety pin / chain, if needed: zinc plated steel
Temperature range:
-10°C to +80°C
Advantages:
•Full bore,
•Low pressure drop,
•Also suitable for solids, as no internal valves,
•Dimensions standardised worldwide according to MIL-C-27487 (1/2" & 5" correspond to industry standard, as not covered in MIL-C-27487)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Brass |
| Hose diameter (inner) [mm] | 13 (1/2") |
| DN [mm] | 15 (1/2") |
| for plug diameter [mm] | 24,3 |
| PN [bar] | 11 |
{{ $t('shop.display.artikel.info') }} KLDS13MS
| {{ $t('shop.all.gewicht') }} | 135 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571167363 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 74122000 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 351) atlas9_seiten/351.pdf
Documentation doku/kld.pdf
Kamlock couplings - Simple and customisable in use!
Documentation doku/kld.pdf
Kamlock couplings - Simple and customisable in use!
*For liquids, please use your preferred stainless steel, brass or aluminium, pressure values at +40°C, **plug Ø 53,4 mm with reduced connection. This does not comply with the standard, ***four hand levers, ****one hand lever without safety pin
