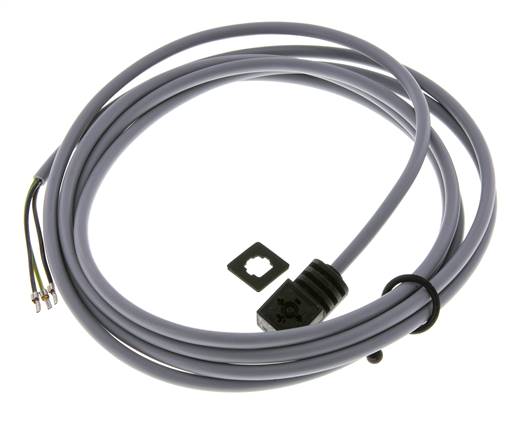

KMEB-1-24-2.5-LED (151688) plug socket with cabl
Item number:
OT-FESTO009422
Properties
| Switching position display | LED |
| Fastening type | on solenoid valve with central screw M2,5 |
| installation position | arbitrary |
| Electrical connection |
3-pin, Angled socket, Wiring diagram Form C acc. to EN 175301-803, acc. to DIN EN 175301-803 |
| Nominal operating voltage DC [V] | 24 |
| Protection line connection | Available |
| Cable length [MTR] | 2,5 |
| Cable diameter [mm] | 5,2 |
| Cable set up | 3x0,5 |
| Protection category |
IP65, acc. to IEC 60529 |
| ambient temperature [°C] | -20 to 80 |
| CE certificate (see declaration of conformity) | nach EU-RoHS-RL |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| Cable sleeve material | PVC |
| Housing material | PA66-GF30 |
| Plug contacts material | Bronze |
Further information on OT-FESTO009422
| Weight | 125 g / pcs |
| GTIN | 4052568030742 |
| Customs duty number | 85444290 |
| Manufacturer | Festo |
Documents
- Group data sheet: KMEB (english) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
