Item description
Application:
To remove solid impurities (dust), dirt-oil-water aerosols down to 25 µm from compressed air and gaseous media. The pre-filter also filters, for example, grinding, graphite, cement and chalk dust etc. This pre-filter increases the service lives of downstream MF or SMF filters. Pre-filters have their applications in instrument and control air in the chemical, petrochemical and pharmaceutical industries as well as in the plastics, food, beverage and process industries, and in general mechanical engineering. They are used for increasing the service life of MF and SMF filters.
Materials:
Body: aluminium with blue polyester resin coating, filter medium: pure, high-molecular polyethylene with aluminium end caps, O-rings: NBR (silicone and release agent-free)
Temperature range:
max. +60 °C
Input pressure:
1 to 16 bar
Pore width in the filter:
25 µm
Condensate drain:
Hose screw connection for inner hose Ø 8 (steam trap is mounted in a condensate borehole G 1/2")
Scope of delivery:
Filter housing, filter element, differential pressure gauge and automatic drainer
To remove solid impurities (dust), dirt-oil-water aerosols down to 25 µm from compressed air and gaseous media. The pre-filter also filters, for example, grinding, graphite, cement and chalk dust etc. This pre-filter increases the service lives of downstream MF or SMF filters. Pre-filters have their applications in instrument and control air in the chemical, petrochemical and pharmaceutical industries as well as in the plastics, food, beverage and process industries, and in general mechanical engineering. They are used for increasing the service life of MF and SMF filters.
Materials:
Body: aluminium with blue polyester resin coating, filter medium: pure, high-molecular polyethylene with aluminium end caps, O-rings: NBR (silicone and release agent-free)
Temperature range:
max. +60 °C
Input pressure:
1 to 16 bar
Pore width in the filter:
25 µm
Condensate drain:
Hose screw connection for inner hose Ø 8 (steam trap is mounted in a condensate borehole G 1/2")
Scope of delivery:
Filter housing, filter element, differential pressure gauge and automatic drainer
Properties

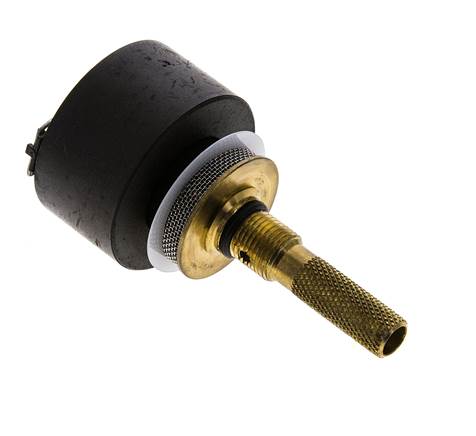

| Version | Condensate drain (spare part for older filter housing) |
| Connection | G 1/8" (male thread) |
Further information on KAU18
| Weight | 37 g / pcs |
| GTIN | 4050571392901 |
| Customs duty number | 84219910 |
Documents
*at +20°C and 7 bar overpressure
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
