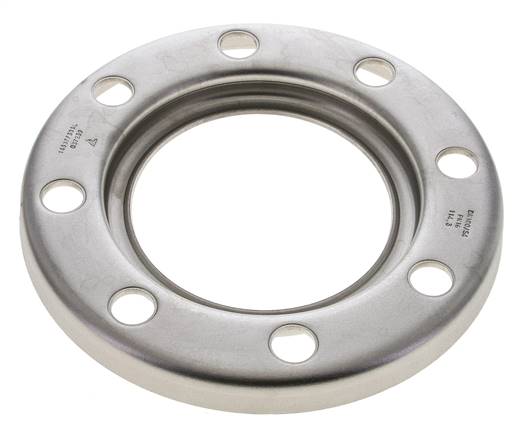

Loose flange DN100-PN10, similar to DIN 2642 & EN 1092-1 (type 02), 1.4301 pressed
Item number:
FL 100 L ES
Item description
Version:
1.4571 and steel zinc plated: DIN 2642, stainless steel: Metal sheet pressed (similar to DIN 2642)
Optional:
EN 1092-1 (type 02) -EN
1.4571 and steel zinc plated: DIN 2642, stainless steel: Metal sheet pressed (similar to DIN 2642)
Optional:
EN 1092-1 (type 02) -EN
Properties
| Material | 1.4301 pressed |
| Flange connection | DN100-PN10 (DIN/EN) |
| DN [mm] | 100 |
| Standard | similar to DIN 2642 & EN 1092-1 (type 02) |
| Number of holes* | 8 |
| A [mm] | 220 |
| D [mm] | 119 |
| b [mm] | 23,0 |
| d [mm] | 17,5 |
| k [mm] | 180 |
| S [mm] | 4 |
Further information on FL100LES
| Weight | 1,2 kg / pcs |
| GTIN | 4050571299422 |
| Customs duty number | 73072100 |
Documents
- Catalogue page Atlas 9 (Page 447) (PDF)
- Data sheet (Print view)
*Wiring diagram up to and including DN 150, suitable for PN 16
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
