Item description
Description:

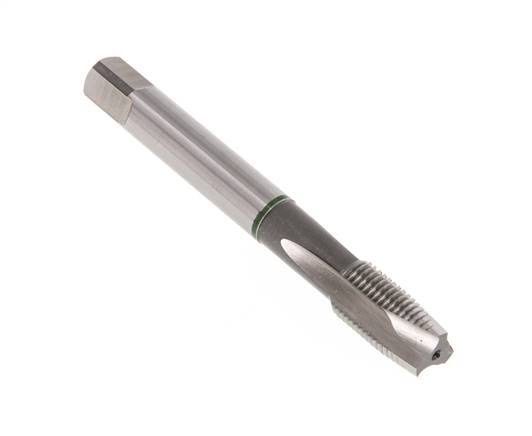

Machine taps for G-threads according to DIN ISO 228 and Rp-threads according to DIN 2999. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version with overflow shank.
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1,000 N/mm² tensile strength), grey-, malleable, ductile, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze.
Machine taps for G-threads according to DIN ISO 228 and Rp-threads according to DIN 2999. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version with overflow shank.
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1,000 N/mm² tensile strength), grey-, malleable, ductile, cast and sintered iron, nickel silver, graphite and short cutting aluminium alloys, brass and bronze.
Properties
| Version | Machine tap for through hole |
| Thread | G 1/4" |
| Core hole diameter [mm] | 11,80 |
| Square (DIN 10) [mm] | 9,0 |
| Total length [mm] | 100 |
| Thread length [mm] | 22 |
| Shaft diameter [mm] | 11 |
| First cut | Shape B, 4 - 5 gears with spiral face inclination |
Further information on GEWMGG14HSSE
| Weight | 75 g / pcs |
| GTIN | 4050571160920 |
| Customs duty number | 82074010 |
Documents
- Catalogue page Atlas 9 (Page 992) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
