Item description
Description:

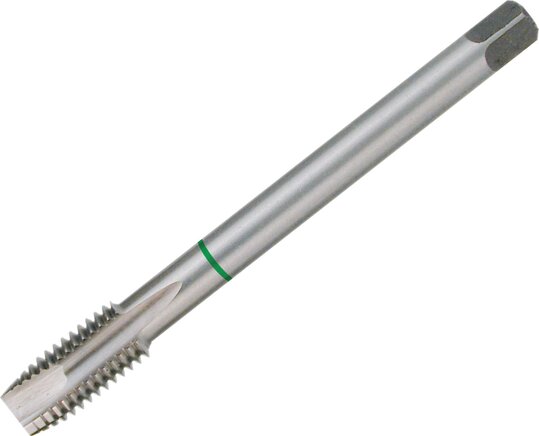

Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
Machine taps for metric threads according to DIN ISO 13. Flanks undercut, tolerances in accordance with ISO 2 / 6H. Screw tap version according to DIN 371 (reinforced shank), from M12 according to DIN 376 (overflow shank)
Quality:
HSS-G Co 5 (HSS-E):
Use for steel, cast steel alloys and non-alloys (<1000 N/mm² tensile strength), grey, malleable, ductile, cast and sintered iron, nickel silver, graphite, short cutting aluminium alloys, brass and bronze
Properties
| Version | Machine tap for through hole |
| Thread | M 12 |
| Core hole diameter [mm] | 10,2 |
| Square (DIN 10) [mm] | 9 |
| Total length [mm] | 110 |
| Thread length [mm] | 22 |
| Shaft diameter [mm] | 9,0 |
| First cut | Shape B, 4 - 5 gears with spiral face inclination |
Further information on GEWMGM12HSSE
| Weight | 60 g / pcs |
| GTIN | 4050571161842 |
| Customs duty number | 82074010 |
Documents
- Catalogue page Atlas 9 (Page 992) (PDF)
- Data sheet (Print view)
*in a stable industrial magazine
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
