Item description
Materials:
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws (please order valves separately)
Connection thread:
Supply air & exhaust: 4 x M 5, outlets: M 5
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws (please order valves separately)
Connection thread:
Supply air & exhaust: 4 x M 5, outlets: M 5
Properties
| Number of stations [PCE] | 14 |

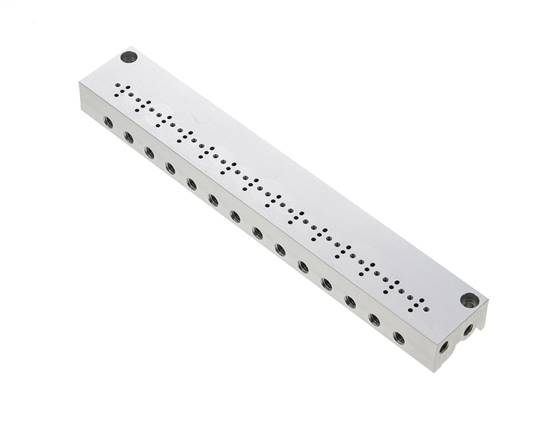

| Description | Manifold for YS10 or YS11 (unmixed) |
| matching dummy plate | YMF10-BLK |
Further information on YMF10-14
| Weight | 155 g / pcs |
| GTIN | 4050571807634 |
| Customs duty number | 84819000 |
| RoHS compliant | Yes |
| Manufacturer | YPC |
Documents
- Catalogue page Atlas 9 (Page 728) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
