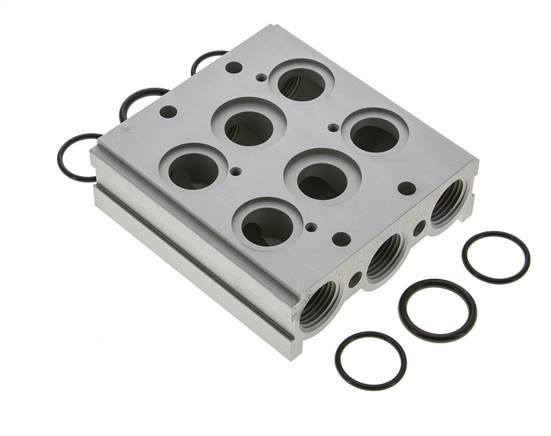

manifold (2-way) for SF6000 (5/2 and 5/3-way)

Name: manifold (2-way) for SF6000 (5/2 and 5/3-way) of YPC
Brand: YPC
SKU: MF6500-2
Price: 62.96 EUR
Availability: InStock

Item number:

MF6500-2

All items of this group

Pohled 360 stupnu: MF6500-2 - radová lišta (%jednoduchá) pro SF6000 (5/2 a 5/3cestná)

€62.96 incl. VAT

Quantity

pcs

Immediately available from the warehouse; order by 16:30 and we will send it today.

Item description

Materials:
Body: aluminium, seals: NBR

Scope of delivery:
Basic body with screws and seals (please order valves separately)

Connection thread:
6x G 1/2"

Properties

Number of stations [PCE]	2
Description	Connection plate (PRS)
matching dummy plate	MF6500-BLK
*Spare seal including screws	MF6500 REP

Further information on MF6500-2

Weight	500 g / pcs
GTIN	4050571489397
Customs duty number	84819000
RoHS compliant	Yes
Manufacturer	YPC

Documents

Catalogue page Atlas 9 (Page 737) (PDF)
Documentation (PDF)
3D CAD file (volume model) (Only for customers that are logged in) (STP)
Data sheet (Print view)

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
