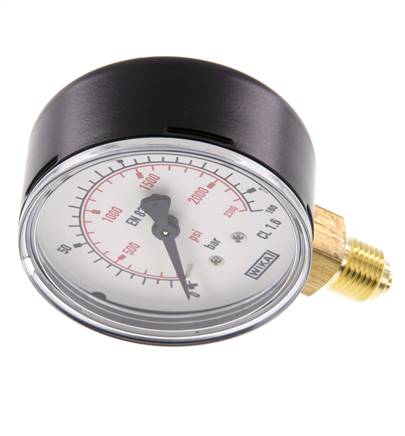

Manometer senkrecht (ST/Ms), 63mm, 0 - 160 bar, G 1/4"
Item number:
MS 16063 ST
Item description
Materials:
Housing: black plastic, measuring system and connection: Cu alloy, window: transparent plastic
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *)
Class:
2,5
Temperature range:
-20 to +60 °C
Protection class:
IP 42
Dial:
1. Scale outside (black), display in bar, 2. scale inside (red), display in PSI
Note:
WIKA Type 111.10
Optional:
Housing made of sheet steel, class 1.6 -ST, ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
Housing: black plastic, measuring system and connection: Cu alloy, window: transparent plastic
Connection thread:
G 1/4" * (Ø 40: G 1/8" or G 1/4" *)
Class:
2,5
Temperature range:
-20 to +60 °C
Protection class:
IP 42
Dial:
1. Scale outside (black), display in bar, 2. scale inside (red), display in PSI
Note:
WIKA Type 111.10
Optional:
Housing made of sheet steel, class 1.6 -ST, ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
Properties
| Diameter [mm] | 63 |
| Display range [bar] | 0 - 160 |
| Connection thread | G 1/4" |
| Scale division [bar] | 5 |
| Version | Housing of steel sheet, class 1.6 |
Further information on MS16063ST
| Weight | 130 g / pcs |
| GTIN | 4050571498474 |
| Customs duty number | 90262040 |
| RoHS compliant | Yes |
| Manufacturer | WIKA (WEEE DE92770372) |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 644) (PDF)
- Documentation (PDF)
- Documentation: Tips for selecting the right pressure gauges (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*with centring pin for profiled seal
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
