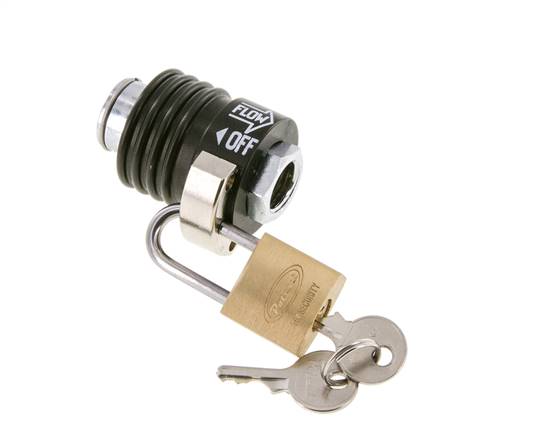

Manual slide valves G 1/4", Safety version: can be locked open and closed with up to 3 padlocks
Item number:
HS 14 SI
Item description
Application:
For breathing and venting of compressed air systems, pressure gauges, etc., for the medium of air, water, vacuum (max. -0,99 bar)
Materials:
Bodies: Nickel-plated brass, sliding sleeve: anodized aluminium, seal: NBR, manufactured silicone-free
Temperature range:
-10 to +80 °C
Media:
Compressed air
For breathing and venting of compressed air systems, pressure gauges, etc., for the medium of air, water, vacuum (max. -0,99 bar)
Materials:
Bodies: Nickel-plated brass, sliding sleeve: anodized aluminium, seal: NBR, manufactured silicone-free
Temperature range:
-10 to +80 °C
Media:
Compressed air
Properties
| Version | Safety version: can be locked open and closed with up to 3 padlocks* |
| G | G 1/4" |
| DN [mm] | 10 |
| L [mm] | 46 |
| Additional locks | VHS 20 H |
Further information on HS14SI
| Weight | 105 g / pcs |
| GTIN | 4050571364779 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 504) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*a padlock is included in the supply volume
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
