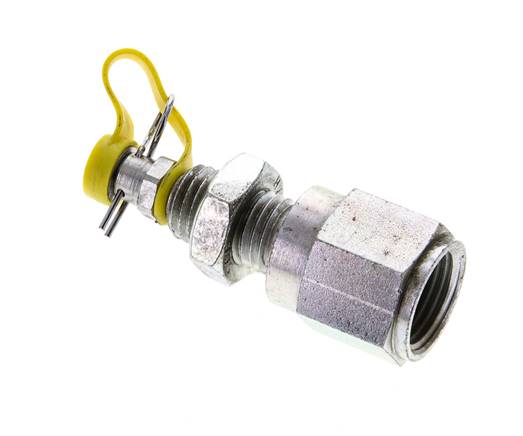

Measuring hose adapter Steckanschluss (Muffe) - G 1/2"
Item number:
ME MAST 12
Item description
Materials:
Body: zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Body: zinc plated steel, seal: NBR
Temperature range:
-20 to +100 °C
Application:
Test couplings are used to control the operating pressure as well as for venting if inconveniently laid tubes are in use. The screw coupling is closed and opens mechanically only after a measuring hose is screwed into it. In this way a connection is made to the medium.
Properties
| Version | Push-in fitting / female thread (for pressure gauges) |
| Page 1 (test couplings) | Steckanschluss (Muffe) |
| Page 2 (female thread) | G 1/2" |
| Operating pressure [bar] | 400 |
Further information on MEMAST12
| Weight | 140 g / pcs |
| GTIN | 4050571486082 |
| Customs duty number | 84812010 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 681) (PDF)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
