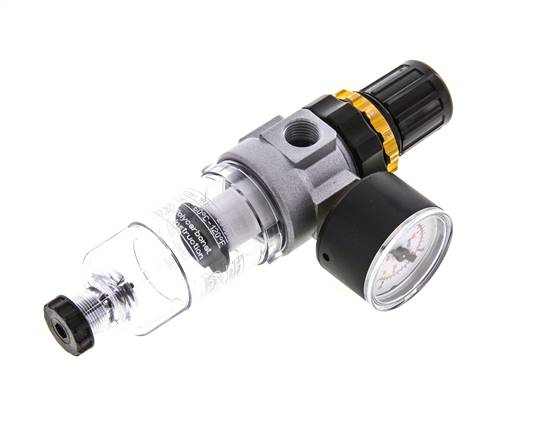

Mini filter regulator G 1/4", 0,2 to 6 bar
{{ $t('shop.all.artikelnummer') }}:
FD 01-6
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Version:
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 5: aluminium), diaphragms and seals: NBR, condensate container: polycarbonate (Model series Mini: spring hood: POM)
Temperature range:
-10°C to +60°C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Pressure gauge connection:
G 1/8"
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
350 l/min
Optional:
Version with metal bowl (1.5 - 25 bar) -M, automatic discharge*** -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC
Advantages:
•Handwheel can be locked by pressing it down
Self-relieving pressure regulator with additional filtering using the centrifugal principle and sintered filter
Materials:
Body: die-cast zinc Z410 (model series 5: aluminium), diaphragms and seals: NBR, condensate container: polycarbonate (Model series Mini: spring hood: POM)
Temperature range:
-10°C to +60°C
Input pressure:
1.5 - 16 bar (with metal bowl 1.5 - 25 bar)
Condensate draining:
semi-automatic**
Media:
Compressed air, neutral gases
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Advantages:
•Automatic venting in the event of overpressure on the secondary side
Pressure gauge connection:
G 1/8"
Pore width in the filter:
5 µm
Max. condensate amount:
16 cm³
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
350 l/min
Optional:
Version with metal bowl (1.5 - 25 bar) -M, automatic discharge*** -AM, automatic discharge closed when not pressurised (0 - 16 bar) -AMNC
Advantages:
•Handwheel can be locked by pressing it down
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread | G 1/4" |
| Pressure regulation range [bar] | 0.2 - 6 |
| Container design | Plastic container |
| Condensate drain | Semi-automatic |
| Pressure gauge display [bar] | 0 - 10 |
| Mounting brackets | WHM 30 |
| input pressure [bar] | 1.5 - 16 |
{{ $t('shop.display.artikel.info') }} FD01-6
| {{ $t('shop.all.gewicht') }} | 320 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571293482 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84811005 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 604) atlas9_seiten/604.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
Documentation doku/wartungsgeraete_standard.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
*Standard series, please prefer for use, since the pressure control range is universally usable, **As soon as the input pressure drops below the min. input pressure, the drain valve opens automatically. By screwing the drain screw tight, the semi-automatic opening of the drain valve can be prevented. ***in conjunction with metal bowl max. 16 bar
