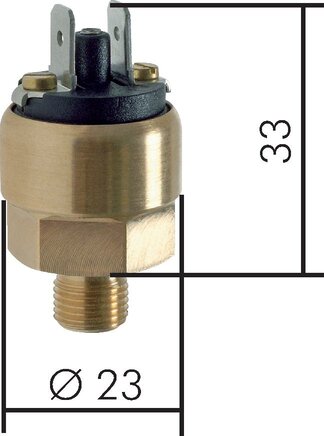

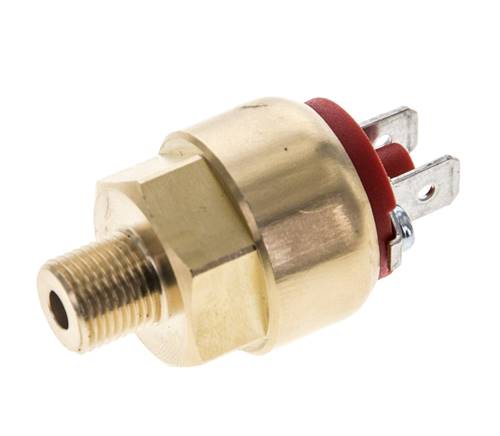

Mini pressure switch 1 to 10 bar (Closer (NO)), G 1/8"
Item number:
DRSS 10 MINI
Item description
Materials:
Body: brass, diaphragms: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
< 10 % of the set value
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Media:
Hydraulic oil, oil emulsion, water, air
Body: brass, diaphragms: NBR
Temperature range:
-25 to +85 °C
Switch-back difference (hysteresis)
< 10 % of the set value
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Media:
Hydraulic oil, oil emulsion, water, air
Properties
| Version | Pressure switches |
| Switch type | NO contact |
| Setting range [bar] | 1 - 10 |
| External thread | G 1/8" |
| Safe at overpressure up to [bar] | 20 |
| Switch capacity | 42 V / 100 VA |
| Operating voltage | 0 - 42 V (AC/DC) |
| Switch capacity [VA] | max. 100 |
| Safety caps | DRSM2 SCHUTZKAPPE |
Further information on DRSS10MINI
| Weight | 41 g / pcs |
| GTIN | 4050571273255 |
| Customs duty number | 85365019 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 685) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
