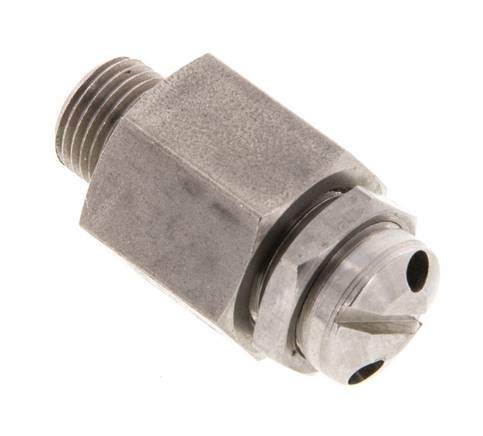

Item description
Materials:
Body: brass or 1.4305, spring: 1.4310, seal: FKM
Temperature range:
-10 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
Body: brass or 1.4305, spring: 1.4310, seal: FKM
Temperature range:
-10 to +180 °C
Media:
Compressed air and other non-toxic non-inflammable gases, blown-off freely
Properties
| Material | 1.4305 |
| Thread | G 1/8" |
| reaction pressure [bar] | 0,5 - 1 |
| Blow-off capacity [m³/h] | 1,5 - 3 |
Further information on SVM18-1ES
| Weight | 31 g / pcs |
| GTIN | 4050571680541 |
| Customs duty number | 84814010 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 638) (PDF)
- Documentation: Safety valves (PDF)
- Documentation: PED statement (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
