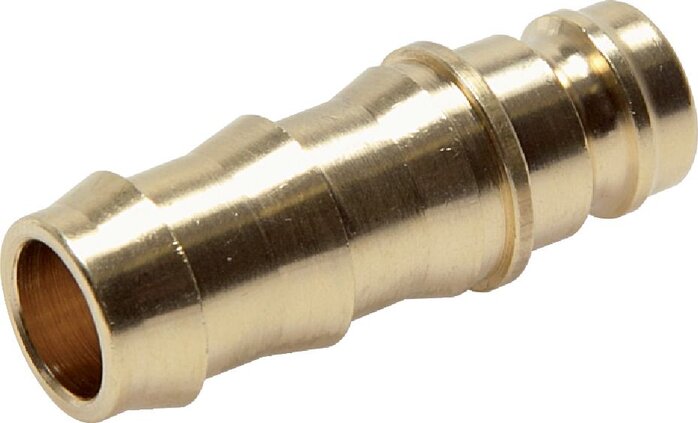

Moulded coupling plug 13mm pin, 12,7mm Push-Lok

{{ $t('shop.all.artikelnummer') }}:

KSTSP 12

{{ /* REQ21384-2.4.3: SEO-Dummy Typ E fuer alle normalen (= nicht 360°) Bilder (das v-if="true" ist fuer Menschen, das v-else fuer non-Js-Crawler) */ }}
Exemplary representation detailed view: Plug dimensions
Preis1: 3,07€ Preis2: 3,07€
Pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Connection, valve, valve body and unlocking sleeve: Brass or 1.4305, spring, circlip and locking balls: Stainless steel, seals: FKM (PTFE coated)

Temperature range:
-20°C to +160°C

Operating pressure:
0 - 15 bar

Operating range:
For liquid media with temperatures up to +160°C, e.g. for cooling circuits on plastic processing machines (+200°C on request)

Note:
Coupling plugs with valve for blocking on both sides (BA) can only be used with coupling sockets with valve (BA).

Optional:
with unlocking protection (standard by stainless steel couplings) -S

To differentiate the brass couplings easier:


Coupling socket:
Sliding sleeve made of plain brass = shut-off, sliding sleeve made of nickel-plated steel = valveless

Coupling plug:
Plain brass plug = metric thread, nickel-plated brass plug = imperial thread

Compatible with**:
Hasco (Z8 .../13 ...)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Brass
Hose Ø inside [mm] 12,7
{{ $t('shop.display.artikel.info') }} KSTSP12
{{ $t('shop.all.gewicht') }} 25 g / Pcs
{{ $t('shop.all.gtin') }} 4050571457167
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.display.artikelgruppe.youtube') }}
{{ $t('shop.all.dokumente') }}
**Names and designations are partly trademarks of the manufacturers entered.
