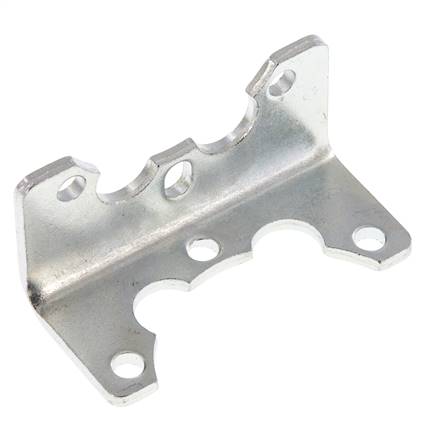

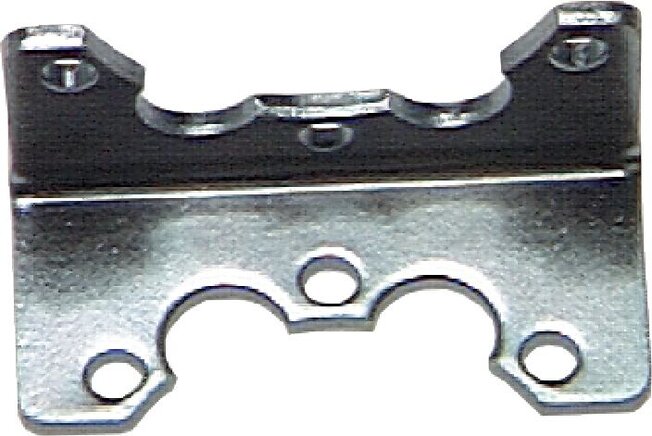

Mounting bracket for Standard 2 (DR, FD, FDO, FRO) & FDR 02
Item number:
BW 20
Item description
Version:
The air unit is fastened using the existing screws of the unit
The air unit is fastened using the existing screws of the unit
Properties
| for series (type) | Standard 2 (DR, FD, FDO, FRO) & FDR 02 |
Further information on BW20
| Weight | 50 g / pcs |
| GTIN | 4050571229429 |
| Customs duty number | 73089059 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 608) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
