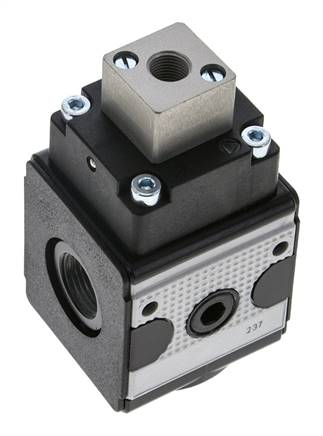

Item description
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
2 to 10 bar
Scope of delivery:
Valve including silencer in exhaust thread
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
2 to 10 bar
Scope of delivery:
Valve including silencer in exhaust thread
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Properties
Further information on PCL38
| Weight | 370 g / pcs |
| GTIN | 4050571916077 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 595) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
