Item description
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Properties
| Model series | Multifix 2 |
| Design | Standard |
| Thread P/A (inlet/outlet) | G 1/2" |
| Thread at outflow B (top) | G 1/2" |
| Thread at outflow C (top) | G 1/2" |
| Thread at outflow D (front/rear) | G 1/4" |
| Flow P-A [l/min] | 11000 |
| Flow P-B [l/min] | 8750 |
| Flow P-C [l/min] | 8750 |
| Flow P-D [l/min] | 1300 |

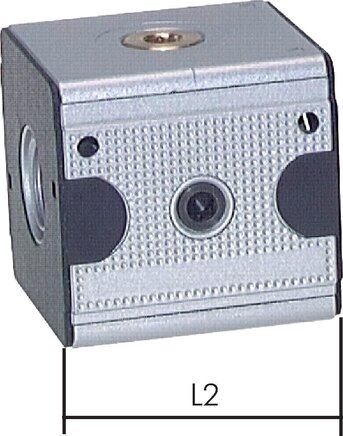

| L1 / L2 [mm] | 69 |
| Mounting brackets | W 2 |
| Coupling kit for coupling with standard design | KP 2 |
| Coupling kit for coupling with narrow design | KPS 2 |
Further information on VBCL12
| Weight | 700 g / pcs |
| GTIN | 4050571718879 |
| Customs duty number | 84818099 |
| RoHS compliant | Yes |
Documents
*Distributor block is supplied with a flange connection; to get a thread, please use connection plate VB CLAP.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
