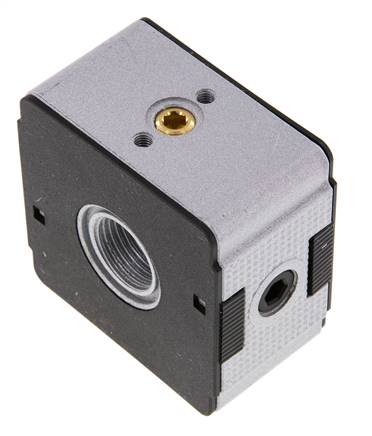

MULTIFIX distributor block, G 1/2", Multifix 2
{{ $t('shop.all.artikelnummer') }}:
VB CL 12 S
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10°C to +60°C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10°C to +60°C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Multifix 2 |
| Design | narrow |
| Thread P/A (inlet/outlet) | G 1/2" |
| Thread at outflow B (top) | G 1/8" |
| Thread at outflow C (top) | G 3/8" |
| Thread at outflow D (front/rear) | G 1/4" |
| Flow P-A [l/min] | 11000 |
| Flow P-B [l/min] | 1400 |
| Flow P-C [l/min] | 3450 |
| Flow P-D [l/min] | 2600 |
| L1 / L2 [mm] | 39 |
| Coupling kit for coupling with standard design | KPS 2 |
| Coupling kit for coupling with narrow design | KPSS 2 |
{{ $t('shop.display.artikel.info') }} VBCL12S
| {{ $t('shop.all.gewicht') }} | 360 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571718893 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818099 |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 596) atlas9_seiten/596.pdf
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/vbcl12s14347.stp
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/vbcl12s14347.stp
*Distributor block is supplied with a flange connection; to get a thread, please use connection plate VB CLAP.
{{ $t('shop.all.unverbindliche_richtwerte') }}
{{ $t('shop.all.unverbindliche_richtwerte') }}
Accessories
