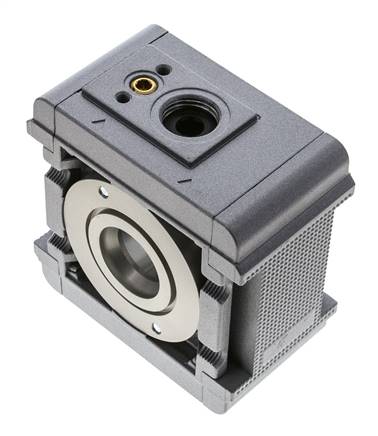

Item description
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 to 16 bar (model series 0: with coupling kit max. 12 bar)
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not model series 4)
Properties
| Model series | Multifix 5 |
| Design | narrow |
| Thread P/A (inlet/outlet) | G 3/4"* |
| Thread at outflow B (top) | G 1/2" |
| Thread at outflow C (top) | G 1/2" |
| Flow P-A [l/min] | 25000 |
| Flow P-B [l/min] | 10000 |
| Flow P-C [l/min] | 10000 |

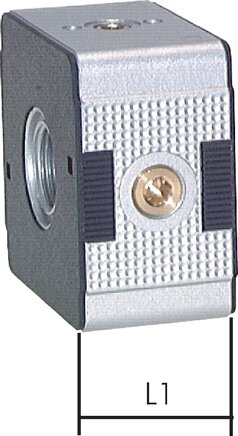

| L1 / L2 [mm] | 60 |
| Coupling kit for coupling with standard design | KPS 5 |
| Coupling kit for coupling with narrow design | KPSS 5 |
| Connection plate for thread on inlet or outlet side | VB CLAP 345 |
Further information on VBCL345
| Weight | 950 g / pcs |
| GTIN | 4050571718954 |
| Customs duty number | 84818099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 596) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Distributor block is supplied with a flange connection; to get a thread, please use connection plate VB CLAP.
