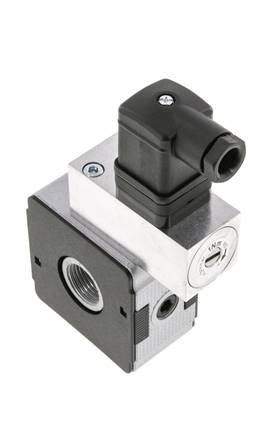

MULTIFIX distributor block with PE converter, G 1/2", Multifix 2
Item number:
VB CL 12 S PE
Item description
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 - 16 bar (model series 0: 0 - 10 bar)
Switch type:
1 x changer (Series 0: 1 x NO contact)
Switching capacity:
DC: 12 - 30 V, max. 3 A / 90 W, AC: 12 - 250 V, max. 5 A / 750 VA (Model series 0: max. 24 V AC / DC, max. 100 VA)
Settings range of the pressure switch:
0.2 - 16 bar (model series 0: 1 - 10 bar)
Protection class:
IP 65 (plug size 3 (4-pin), model series 0: screw terminals M 2)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10 to +60 °C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 - 16 bar (model series 0: 0 - 10 bar)
Switch type:
1 x changer (Series 0: 1 x NO contact)
Switching capacity:
DC: 12 - 30 V, max. 3 A / 90 W, AC: 12 - 250 V, max. 5 A / 750 VA (Model series 0: max. 24 V AC / DC, max. 100 VA)
Settings range of the pressure switch:
0.2 - 16 bar (model series 0: 1 - 10 bar)
Protection class:
IP 65 (plug size 3 (4-pin), model series 0: screw terminals M 2)
Properties
| Model series | Multifix 2 |
| Design | narrow |
| Thread P/A (inlet/outlet) | G 1/2" |
| Thread at outflow C (top) | G 3/8" |
| Thread at outflow D (front) | G 1/4" |
| Thread at outflow E (rear) | G 1/4" |
| Flow P-A [l/min] | 11000 |
| Flow P-C [l/min] | 3450 |
| Flow P-D [l/min] | 2600 |
| Flow P-E [l/min] | 2600 |
| L [mm] | 39 |
| Coupling kit for coupling with standard design | KPS 2 |
| Coupling kit for coupling with narrow design | KPSS 2 |
| input pressure [bar] | 0 - 16 |
| Settings range of the pressure switch [bar] | 0,2 - 16 |
Further information on VBCL12SPE
| Weight | 600 g / pcs |
| GTIN | 4050571690366 |
| Customs duty number | 84818099 |
| RoHS compliant | Yes |
Documents
*Distributor block is supplied with a flange connection; to get a thread, please use connection plate VB CLAP.
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
