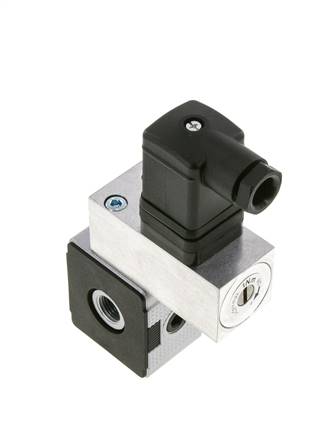

MULTIFIX distributor block with PE converter, G 1/4", Multifix 1
{{ $t('shop.all.artikelnummer') }}:
VB CL 14 S PE
{{ $t('shop.all.menge') }}
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10°C to +60°C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 - 16 bar (model series 0: 0 - 10 bar)
Switch type:
1 x changer (Series 0: 1 x NO contact)
Switching capacity:
DC: 12 - 30 V, max. 3 A / 90 W, AC: 12 - 250 V, max. 5 A / 750 VA (Model series 0: max. 24 V AC / DC, max. 100 VA)
Settings range of the pressure switch:
0.2 - 16 bar (model series 0: 1 - 10 bar)
Protection class:
IP 65 (plug size 3 (4-pin), model series 0: screw terminals M 2)
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), cover: POM, diaphragms and seals: NBR
Media:
Oiled and unoiled compressed air, neutral gasses
Temperature range:
-10°C to +60°C
Advantages:
•Easy assembly of individual components using coupling kits within a model series and thread size.
Input pressure:
0 - 16 bar (model series 0: 0 - 10 bar)
Switch type:
1 x changer (Series 0: 1 x NO contact)
Switching capacity:
DC: 12 - 30 V, max. 3 A / 90 W, AC: 12 - 250 V, max. 5 A / 750 VA (Model series 0: max. 24 V AC / DC, max. 100 VA)
Settings range of the pressure switch:
0.2 - 16 bar (model series 0: 1 - 10 bar)
Protection class:
IP 65 (plug size 3 (4-pin), model series 0: screw terminals M 2)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Model series | Multifix 1 |
| Design | narrow |
| Thread P/A (inlet/outlet) | G 1/4" |
| Thread at outflow C (top) | G 1/4" |
| Thread at outflow D (front) | G 1/4" |
| Thread at outflow E (rear) | G 1/4" |
| Flow P-A [l/min] | 3300 |
| Flow P-C [l/min] | 2300 |
| Flow P-D [l/min] | 2300 |
| Flow P-E [l/min] | 2300 |

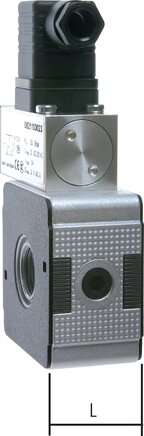

| L [mm] | 35 |
| Coupling kit for coupling with standard design | KPS 1 |
| Coupling kit for coupling with narrow design | KPSS 1 |
| input pressure [bar] | 0 - 16 |
| Settings range of the pressure switch [bar] | 0.2 - 16 |
{{ $t('shop.display.artikel.info') }} VBCL14SPE
| {{ $t('shop.all.gewicht') }} | 450 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571690373 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818099 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
{{ $t('shop.all.dokumente') }}
- {{ $t('shop.display.datenblatt.titel') }} ({{ $t('shop.all.englisch') }}) (Print view)
Catalogue page Atlas 9 (Page 596) atlas9_seiten/596.pdf
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/vbcl14spe14350.stp
Documentation doku/wartungsgeraete_multifix.pdf
Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
3D CAD file (volume model) protected/cad/3d/70381/vbcl14spe14350.stp
*Distributor block is supplied with a flange connection; to get a thread, please use connection plate VB CLAP.
