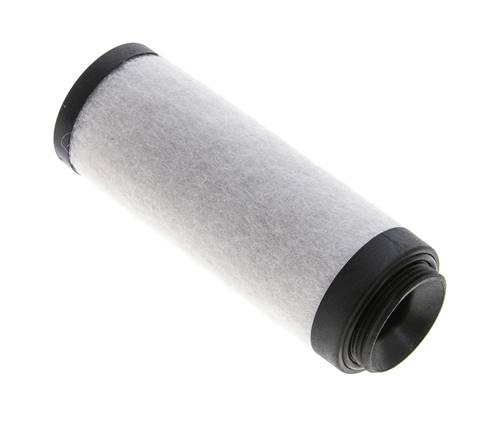

Item description
Materials:
Body: Zinc pressure casting Z410, Seals: NBR, condensate tank: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
-0.965 to 0 bar
Condensate draining:
none
Pore width in the filter:
0,3 µm
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with protective cage -S, version with metal bowl and inspection tube -M
Body: Zinc pressure casting Z410, Seals: NBR, condensate tank: polycarbonate
Temperature range:
-10 to +60 °C
Input pressure:
-0.965 to 0 bar
Condensate draining:
none
Pore width in the filter:
0,3 µm
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with protective cage -S, version with metal bowl and inspection tube -M
Further information on V38/100
| Weight | 80 g / pcs |
| GTIN | 4050571715472 |
| Customs duty number | 84219990 |
| RoHS compliant | Yes |
Documents
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
