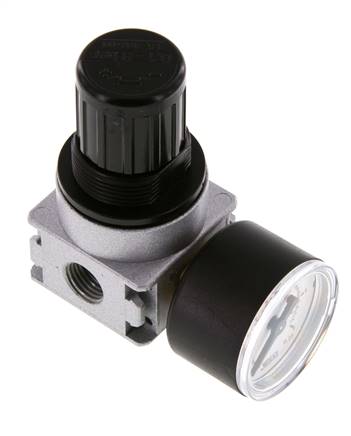

MULTIFIX pressure regulator, G 1/4", 0,1 to 3bar, model series 0
Item number:
R 0014-3
Item description
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Input pressure:
max. 16 bar (for use with coupling kit max. 12 bar)
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
600 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Input pressure:
max. 16 bar (for use with coupling kit max. 12 bar)
Switch panel thread:
M 30x1,5
Scope of delivery:
Pressure regulator including 40 mm pressure gauge
Flow:
600 l/min ***
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11
Properties
Further information on R0014-3
| Weight | 310 g / pcs |
| GTIN | 4050571563349 |
| Customs duty number | 84811099 |
| RoHS compliant | Yes |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 578) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Standard series, please prefer for use, since the pressure control range is universally usable, **Volkswagen lock (is supplied without a key) ***measured at P1=10 bar, P2=6.3 bar and 1 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
