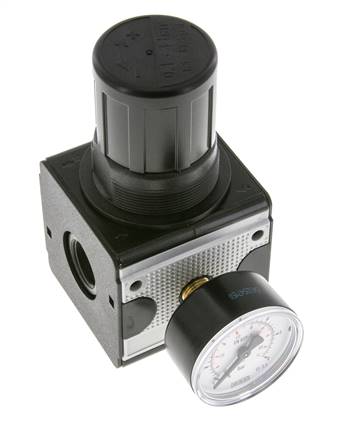

MULTIFIX pressure regulator, rowassy. G 1/2", 0,1 to 3bar, Multifix 2
Item number:
RB 12-3
Item description
Version:
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Input pressure:
max. 16 bar (model series 0: when using a coupling kit max. 12 bar)
Scope of delivery:
Pressure regulator including pressure gauge (model series 0 & 1: 40 mm (G 1/8"), model series 2: 50 mm (G 1/4"))
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11
Advantages:
•By combining several adjustable nozzles into a block, several compressed air circuits can be supplied with independently regulated pressure from one pressure supply. The compressed air outlet is placed opposite the pressure gauge (model series 0 & 1: G 1/4", model series 2: G 1/2")
Self-relieving pressure regulator
Materials:
Body: die-cast zinc Z410 (model series 4 & 5: aluminium), spring hood: POM, diaphragms and seals: NBR
Temperature range:
-10 to +60 °C
Pressure gauge connection (does not apply to pressure regulators with continuous pressure supply):
G 1/4" (model series 0: G 1/8")
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series and thread size,
•Hand wheel can be locked by pressing down on it
Input pressure:
max. 16 bar (model series 0: when using a coupling kit max. 12 bar)
Scope of delivery:
Pressure regulator including pressure gauge (model series 0 & 1: 40 mm (G 1/8"), model series 2: 50 mm (G 1/4"))
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU (not E-11 closure)
Optional:
Lockable using a cylinder lock -K, can be locked using a cylinder lock with E 11-closure** -KE11
Advantages:
•By combining several adjustable nozzles into a block, several compressed air circuits can be supplied with independently regulated pressure from one pressure supply. The compressed air outlet is placed opposite the pressure gauge (model series 0 & 1: G 1/4", model series 2: G 1/2")
Properties
| Model series | Multifix 2 |
| Thread input | G 1/2" |
| Thread outlet | G 1/2" |
| Pressure regulation range [bar] | 0,1 - 3 |
| Pressure gauge display [bar] | 0 - 4 |
| Flow*** [l/min] | 8500 |
| Mounting brackets | W 2 |
| Mounting brackets with panel union nut | MW 2 |
| Coupling kit | KP 2 |
| H [mm] | 135 |
| H1 [mm] | 100 |
| L [mm] | 69 |
| Switch panel thread | M 50x1,5 |
Further information on RB12-3
| Weight | 900 g / pcs |
| GTIN | 4050571570712 |
| Customs duty number | 84811099 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 580) (PDF)
- Documentation (PDF)
- Documentation: Decision aid for selection of air units (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Standard series, please prefer for use, since the pressure control range is universally usable, **Volkswagen lock (is supplied without a key) ***measured at P1=10 bar, P2=6.3 bar and 1 bar pressure drop
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
