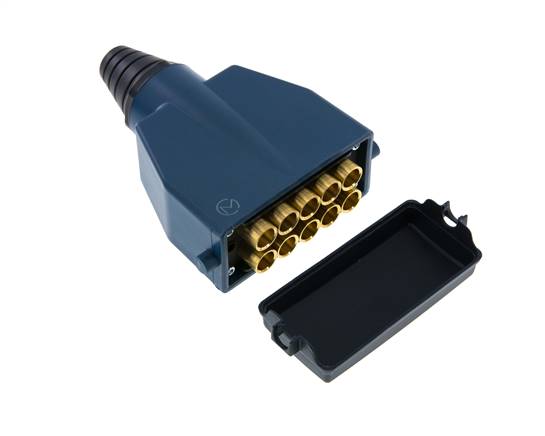

Item description
Application:
For a quick and high safety standard coupling of several pneumatic hoses and multiple hoses.
Materials:
Body and plug plate: Technopolymer, seal: NBR, push-in connector: brass
Temperature range:
-20 to +70 °C
Note:
Plugs and sleeves can only be coupled together if they are the same size and same number of lines.
For a quick and high safety standard coupling of several pneumatic hoses and multiple hoses.
Materials:
Body and plug plate: Technopolymer, seal: NBR, push-in connector: brass
Temperature range:
-20 to +70 °C
Note:
Plugs and sleeves can only be coupled together if they are the same size and same number of lines.
Properties
| Version | Plug |
| Hose diameter (outer) [mm] | 6 |
| Number of lines | 10 |
| shut-off on both sides | no |
| size | 1 |
| B [mm] | 116 |
| A [mm] | 103 |
| Operating pressure [bar] | -0.99 to 15 |
| C [mm] | 86 |
| Replacement dust protection cover for plugs | MFK STAUB 1 |
Further information on MFK610ST
| Weight | 390 g / pcs |
| GTIN | 4050571489656 |
| Customs duty number | 74122000 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 322) (PDF)
- Documentation (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
