Multiple manifold (12-fold) for 5/2-way & 5/3-way valves

V 51-12

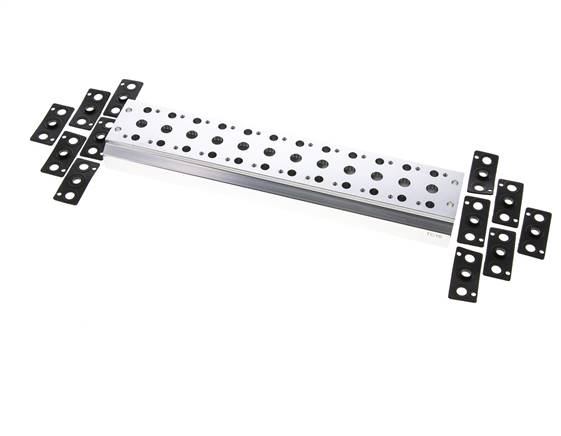

Exemplary representation: Multiple manifold for 5/2-way & 5/2-way valves
91,15€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, seals: NBR

Scope of delivery:
Basic body with screws and seals (please order valves separately)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Design for 5/2-way & 5/3-way valves
Version for model series RV10
Number of stations 12
Description Multiple manifold
matching dummy plate* V 51-BP
*Spare seal including screws V 51-REP
A [mm] 18,0
B [mm] 19
C [mm] 5
D [mm] 58,0
E [mm] 30,0
F [mm] 28,0
G1 (2x) G 1/4"
G2 (exhaust air) 4x G 1/4"
H [mm] 2
J [mm] 4,5
K [mm] 23,0
L [mm] 13
M [mm] 40,0
N [mm] 9,00
O [mm] 4,5
P [mm] 20
V51-12
{{ $t('shop.all.gewicht') }} 440 g / pcs
{{ $t('shop.all.gtin') }} 4050571715526
{{ $t('shop.display.artikel.zollwarennummer') }} 84819000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
{{ $t('shop.all.dokumente') }}
*incl. Screws, without seal

{{ $t('shop.all.unverbindliche_richtwerte') }}
