Item description
Materials:
Body: aluminium, seals: NBR
Scope of delivery:

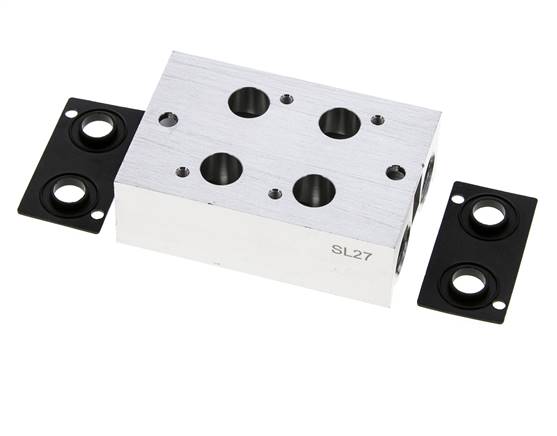

Basic body with screws and seals (please order valves separately)
Body: aluminium, seals: NBR
Scope of delivery:
Basic body with screws and seals (please order valves separately)
Properties
| Design | for 3/2-way valves |
| Version | for model series RV20 |
| Number of stations [PCE] | 2 |
| Description | Multiple manifold |
| matching dummy plate* | V 32-BP |
| *Spare seal including screws | V 32-REP |
| A [mm] | 23,0 |
| B [mm] | 23 |
| C [mm] | 6 |
| D [mm] | 45,0 |
| E [mm] | 30,0 |
| F [mm] | 22,5 |
| G1 (2x) | G 1/4" |
| G2 (exhaust air) | 2x G 1/4" |
| H [mm] | 0 |
| J [mm] | 4,5 |
| K [mm] | 23,5 |
| L [mm] | 17 |
| M [mm] | 24,0 |
| N [mm] | 13,50 |
Further information on V32-2
| Weight | 115 g / pcs |
| GTIN | 4050571714789 |
| Customs duty number | 84819000 |
| RoHS compliant | Yes |
| Manufacturer | EMC |
Documents
- Catalogue page Atlas 9 (Page 720) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*incl. Screws, without seal
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
