Multiple manifold (4-fold) for 3/2-way valves

V 32-4

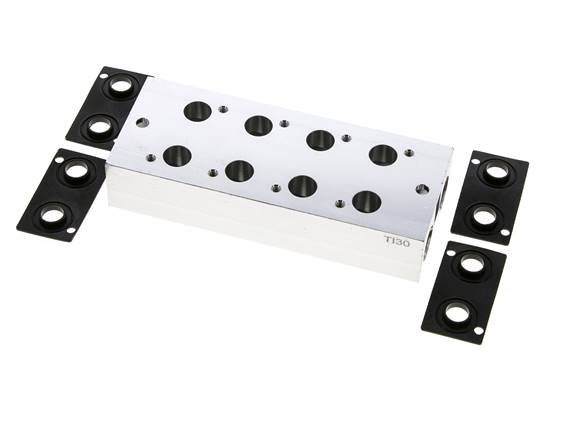

Exemplary representation: Manifold for 3/2-way valves
32,84€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: aluminium, seals: NBR

Scope of delivery:
Basic body with screws and seals (please order valves separately)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Design for 3/2-way valves
Version for model series RV20
Number of stations 4
Description Multiple manifold
matching dummy plate* V 32-BP
*Spare seal including screws V 32-REP
A [mm] 23,0
B [mm] 23
C [mm] 6
D [mm] 45,0
E [mm] 30,0
F [mm] 22,5
G1 (2x) G 1/4"
G2 (exhaust air) 2x G 1/4"
H [mm] 0
J [mm] 4,5
K [mm] 23,5
L [mm] 17
M [mm] 24,0
N [mm] 13,50
V32-4
{{ $t('shop.all.gewicht') }} 195 g / pcs
{{ $t('shop.all.gtin') }} 4050571715090
{{ $t('shop.display.artikel.zollwarennummer') }} 84819000
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
{{ $t('shop.all.dokumente') }}
*incl. Screws, without seal
