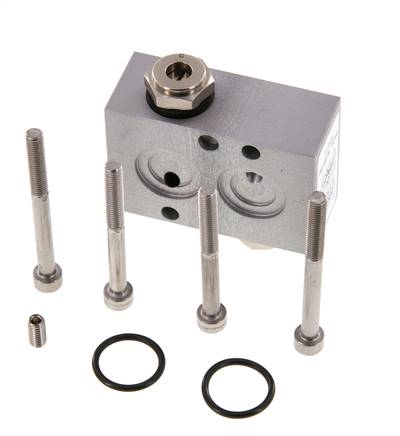

NAMUR adapter plates, 5/2-way flow control on both sides
Item number:
DR NAMUR
Item description
Materials:
Body: anodized aluminium, flow control valves: nickel-plated brass, seal: NBR
Advantages:
•precise adjustment of the opening or closing speed of the actuator,
•for actuators with spring return (3/2 way) the reset speed can also be set
Body: anodized aluminium, flow control valves: nickel-plated brass, seal: NBR
Advantages:
•precise adjustment of the opening or closing speed of the actuator,
•for actuators with spring return (3/2 way) the reset speed can also be set
Properties
| function | 5/2-way flow control on both sides |
| Height [mm] | 25 |
Further information on DRNAMUR
| Weight | 230 g / pcs |
| GTIN | 4050571270414 |
| Customs duty number | 84812090 |
Documents
- Catalogue page Atlas 9 (Page 544) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
