NAMUR solenoid valve, 5/2-way Pulse valve (bistable), G 1/4", 230 V AC

SN3200 IPSC-A2 *

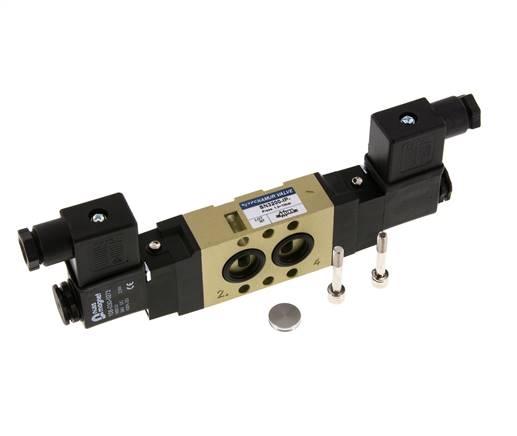

Exemplary representation: 5/2-way solenoid pulse valve Schematic symbol: 5/2-way solenoid pulse valve
113,36€ incl. VAT
pcs
{{ $t('shop.display.artikel.hinweis_alternative') }}
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)

Temperature range:
-10°C to +60°C

Media:
oiled and unoiled filtered compressed air

Switching time (at 5 bar):
< 30 ms

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
±10 %

Protection class:
IP 65

Structural shape solenoid coil:
M (plug size 1)

Information:
These valves are always supplied with a solenoid coil and a connector plug.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Control voltage 230 V AC
Switching 5/2-way
function Pulse valve (bistable)
Thread (1x) G 1/4"
Thread exhaust air (2x) G 1/4"
Operating pressure [bar] 1.5 - 10
flow [l/min] 1000
Power consumption (AC) [VA] 4,1
Spare solenoid coil MAG M 230V
SN3200IPSC-A2
{{ $t('shop.all.gewicht') }} 390 g / pcs
{{ $t('shop.all.gtin') }} 4050571632687
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} YPC
{{ $t('shop.all.dokumente') }}
    Catalogue page Atlas 9 (Page 545) atlas9_seiten/545.pdf
    Documentation doku/magnetventile_5_2_5_3.pdf
    3D CAD file (volume model) protected/cad/3d/72028/sn3200ipsc-a2248495.stp
