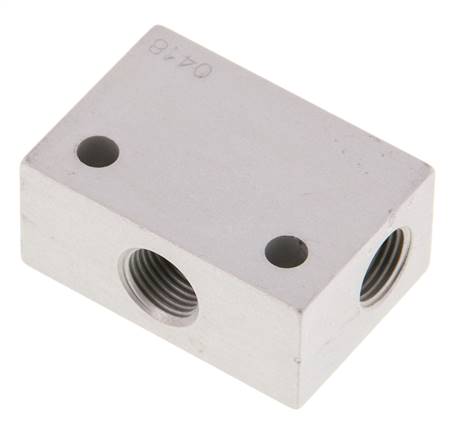

Item description
Materials:
Body: anodized aluminium, internal parts: brass and stainless steel (standard design: brass and plastic), seals: NBR
Media:
oiled and unoiled filtered compressed air
Function:
There is a signal present at output 2 only if there is a signal present either at input 12 or 14. If there are signals applied at both the inputs, the higher pressure is directed to output 2. The OR valve, being a passive element, does not have its own venting. Upon deletion of both input signals, venting takes place through the upstream valves.
Body: anodized aluminium, internal parts: brass and stainless steel (standard design: brass and plastic), seals: NBR
Media:
oiled and unoiled filtered compressed air
Function:
There is a signal present at output 2 only if there is a signal present either at input 12 or 14. If there are signals applied at both the inputs, the higher pressure is directed to output 2. The OR valve, being a passive element, does not have its own venting. Upon deletion of both input signals, venting takes place through the upstream valves.
Properties
| Version | Precision |
| Thread (3x) | G 1/8" |
| Nominal width [mm] | 4 |
| flow [l/min] | 280 |
| Operating pressure [bar] | -0.95 to 10 |
| Temperature range [°C] | -10 to +70 |
Further information on OR18
| Weight | 35 g / pcs |
| GTIN | 4050571536053 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
YouTube videos:
Documents
- Catalogue page Atlas 9 (Page 782) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
