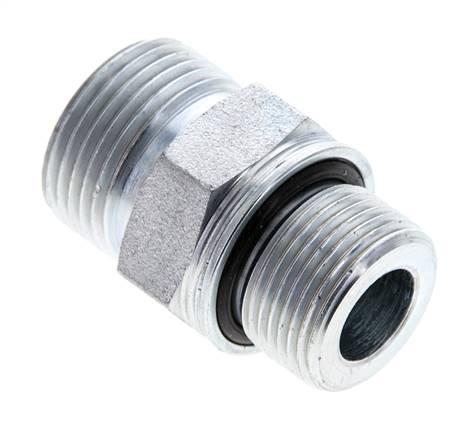

ORFS screwed connection UNS 1"-14(male thread)-M 22x1,5
Item number:
GE 10-M22 ORFS
Properties
| Material | Zinc plated steel |
| ORFS (external) | UNS 1"-14 |
| Screw-in thread* G | M 22x1,5 |
| PN [bar] | 400 |
Further information on GE10-M22ORFS
| Weight | 105 g / pcs |
| GTIN | 4050571317256 |
| Customs duty number | 73269098 |
Documents
- Catalogue page Atlas 9 (Page 256) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*with an elastomer seal
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
