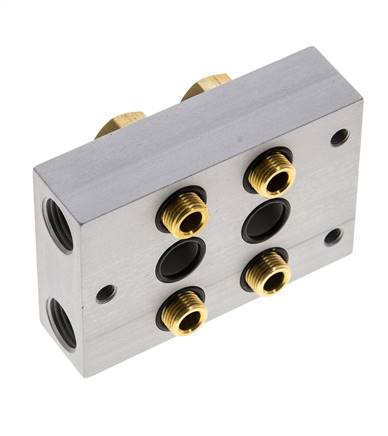

P-R-S strip incl. hollow screws and seals for valve series M04 / P04
Item number:
R 283/2
Properties
| Version | P-R-S strip incl. hollow screws and seals |
| Number of stations [PCE] | 2 |
| for valve series | 04 |
| matching closure plate for empty station | R 283/V |
| matching spare hollow screws | H 283 |
| A | M 5 |
| B [mm] | 20 |
| C [mm] | 5 |
| E [mm] | 6 |
| F [mm] | 25 |
| G | G 1/8" |
| H [mm] | 22,20 |
| I [mm] | 6 |
| J [mm] | 32 |
| K [mm] | 50 |
| L | G 1/4" |
| M [mm] | 32 |
| SW [mm] | 14 |
Further information on R283/2
| Weight | 195 g / pcs |
| GTIN | 4050571567866 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
