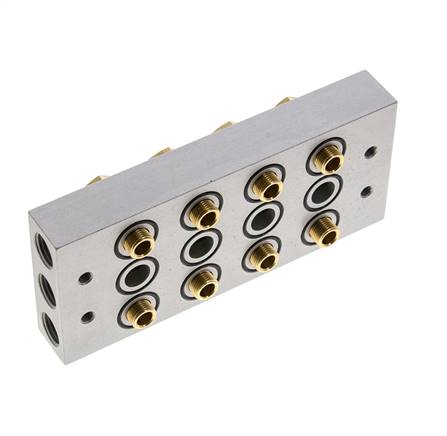

P-R-S strip incl. hollow screws and seals for valve series M05 / P05
Item number:
R 183/4
Properties
| Version | P-R-S strip incl. hollow screws and seals |
| Number of stations [PCE] | 4 |
| for valve series | 05 |
| matching closure plate for empty station | R 183/V |
| matching spare hollow screws | H 183 |
| A | M 5 |
| B [mm] | 20 |
| C [mm] | 6 |
| E [mm] | 10 |
| F [mm] | 30 |
| G | G 1/8" |
| H [mm] | 25,25 |
| I [mm] | 36 |
| J [mm] | 20 |
| K [mm] | 60 |
| L | G 1/4" |
| M [mm] | 20 |
| SW [mm] | 14 |
Further information on R183/4
| Weight | 420 g / pcs |
| GTIN | 4050571567323 |
| Customs duty number | 76109090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 753) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Delivered without a seal as one is already integrated into the outlet
