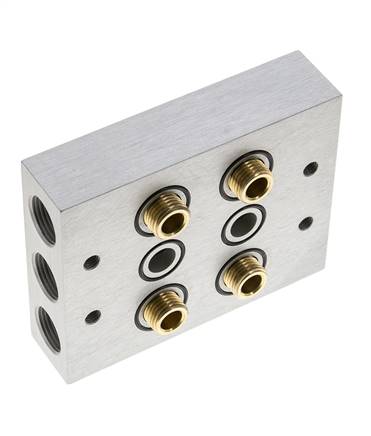

P-R-S strip incl. hollow screws and seals for valve series M07 / P07

Name: P-R-S strip incl. hollow screws and seals for valve series M07 / P07 of Airtec (WEEE DE94696834 )
Brand: Airtec (WEEE DE94696834 )
SKU: R 143/2
Price: 82.15 EUR
Availability: InStock

Item number:

R 143/2

All items of this group

Vista a 360 gradi: R 143/2 - Barra P-R-S incl. viti cave e guarnizioni per valvole serie M07 / P07

€82.15 incl. VAT

Quantity

pcs

Immediately available from the warehouse; order by 16:30 and we will send it today.

Properties

Version	P-R-S strip incl. hollow screws and seals
Number of stations [PCE]	2
for valve series	07
matching closure plate for empty station	R 143/V
matching spare hollow screws	H 143
A	M 5
B [mm]	25
C [mm]	8
E [mm]	10
F [mm]	35
G	G 1/4"
H [mm]	30,30
I [mm]	44
J [mm]	25
K [mm]	80
L	G 3/8"
M [mm]	25
SW [mm]	19

Further information on R143/2

Weight	500 g / pcs
Customs duty number	76109090
RoHS compliant	Yes
Manufacturer	Airtec (WEEE DE94696834 )

Documents

Catalogue page Atlas 9 (Page 753) (PDF)
Data sheet (Print view)

*Delivered without a seal as one is already integrated into the outlet

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
