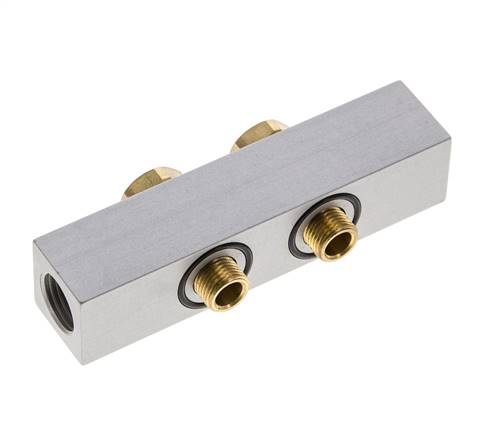

P-strip incl. hollow screws and seals for valve series M05 / P05
Item number:
R 181/2
Properties
| Version | P-strip incl. hollow screws and seals |
| Number of stations [PCE] | 2 |
| for valve series | 05 |
| suitable mounting brackets (2 units) | R 181/W |
| matching closure plate for empty station | R 181/V |
| matching spare hollow screws | H 183 |
| A [mm] | 25,25 |
| B [mm] | 30 |
| C [mm] | 40 |
| D [mm] | 10 |
| E [mm] | 19 |
| F [mm] | 7 |
| G | G 1/8" |
| H [mm] | 30 |
| J | G 1/4" |
| K [mm] | 19 |
| SW [mm] | 14 |
Further information on R181/2
| Weight | 85 g / pcs |
| GTIN | 4050571567217 |
| Customs duty number | 84812090 |
| RoHS compliant | Yes |
| Manufacturer | Airtec (WEEE DE94696834 ) |
Documents
- Catalogue page Atlas 9 (Page 753) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Delivered without a seal as one is already integrated into the outlet
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
