Pair of clamp jaws 6mm, Size 1 dual Polypropylene

Item number:

GR 16 DOKP

All items of this group
€1.73 incl. VAT
pair
Properties
Ma­te­r­ial Polypropy­lene
size Size 1 dual

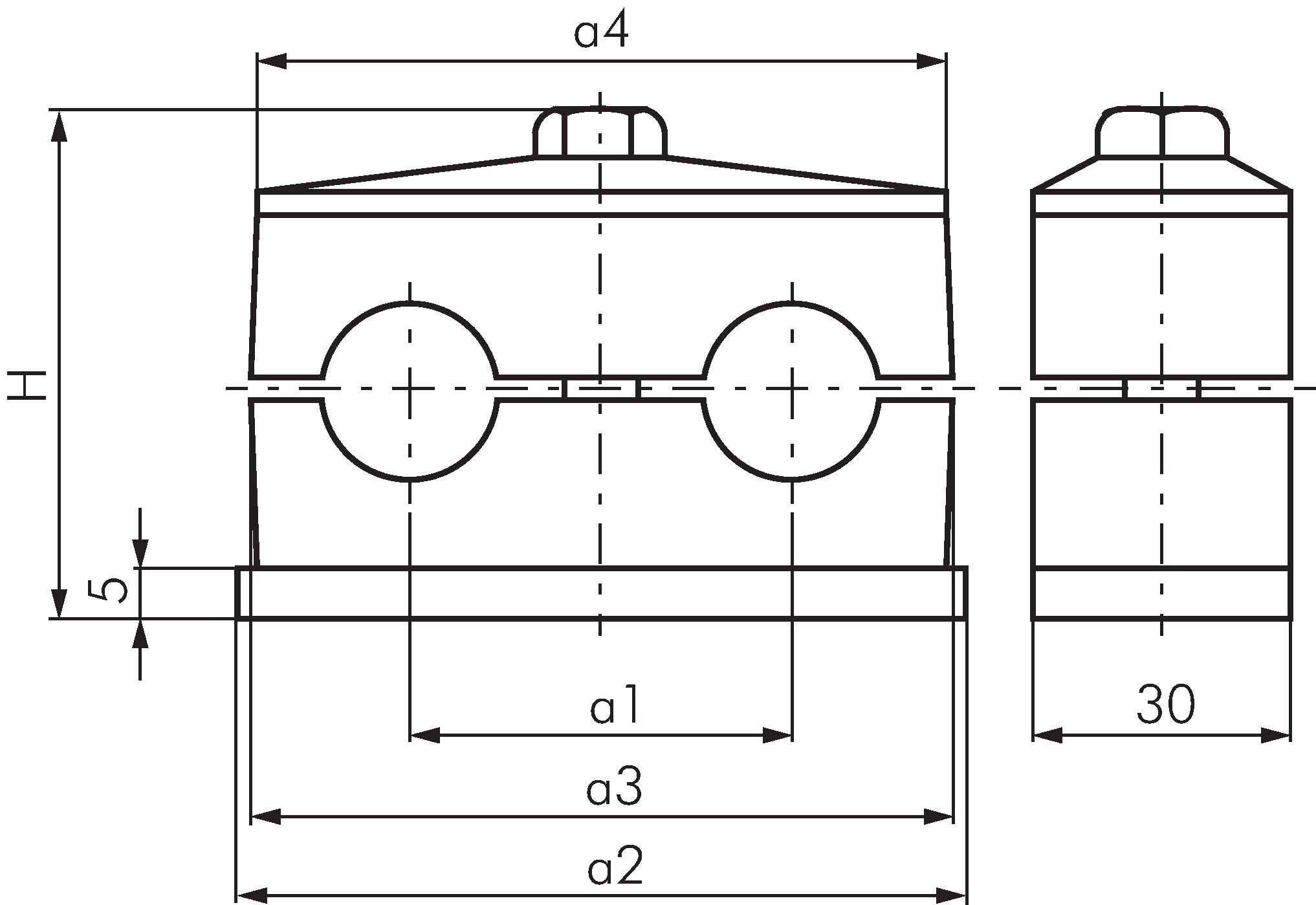

Pipe di­am­e­ter (outer) [mm] 6
H [mm] 43,0
a1 [mm] 20
a2 [mm] 37
a3 [mm] 36
a4 [mm] 34
Further information on GR16DOKP
Weight 15 g / pair
GTIN 4050571331023
Customs duty number 39174000
Manufacturer Hydac
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
