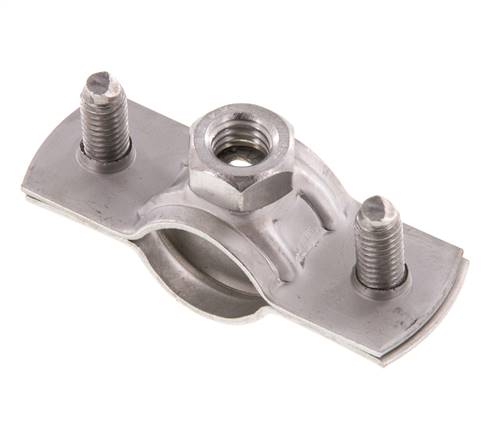

Item description
Materials:
Clamp: 1.4404, insert: EPDM
Temperature range:
-50°C to +110°C
Advantages:
•Type with insert: Sound insulation for DIN 4109,
•Pipe clamp is flipped open in front of pipe assembly, making it easy to insert the tube,
•Engaging the tube securely allows it to be pre-fit and adjusted before tightening the clamp.
Clamp: 1.4404, insert: EPDM
Temperature range:
-50°C to +110°C
Advantages:
•Type with insert: Sound insulation for DIN 4109,
•Pipe clamp is flipped open in front of pipe assembly, making it easy to insert the tube,
•Engaging the tube securely allows it to be pre-fit and adjusted before tightening the clamp.
Properties
| Version | without an insert |
| Diameter clamping range [mm] | 15 - 19 |
| Thread G | M 8 |
| Width B [mm] | 20 |
| permitted load [N] | 1.000 |
Further information on RS19ES
| Weight | 36 g / pcs |
| GTIN | 4050571867317 |
| Customs duty number | 73269060 |
| RoHS compliant | Yes |
Documents
- Catalogue page Atlas 9 (Page 430) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
