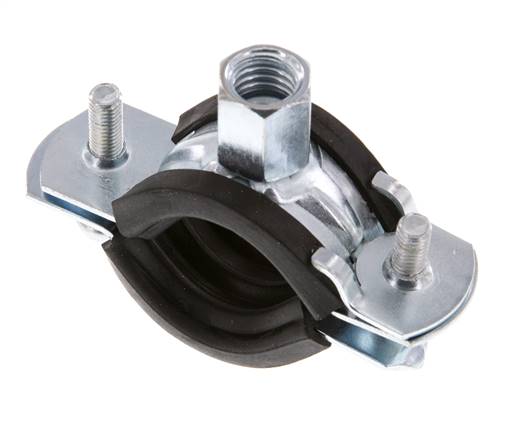

pipe clamp 20 to 24mm, zinc-plated steel with insert, FISCHER
Item number:
RSF 24
Item description
Materials:
Clamp: Steel, galvanized, Wadding: SBR / EPDM
Temperature range:
-40 to +100 °C
Advantages:
•Sound insulation for DIN 4109,
•quick fastener guarantees a simple and quick assembly,
•large opening angle for easy inserting of tubes (pipe clamp is opened by folding down),
•with reliable engaging, the tube can be pre-assembled and adjusted before tightening the clamp.
Clamp: Steel, galvanized, Wadding: SBR / EPDM
Temperature range:
-40 to +100 °C
Advantages:
•Sound insulation for DIN 4109,
•quick fastener guarantees a simple and quick assembly,
•large opening angle for easy inserting of tubes (pipe clamp is opened by folding down),
•with reliable engaging, the tube can be pre-assembled and adjusted before tightening the clamp.
Properties
| Diameter clamping range [mm] | 20 - 24 |
| Thread G* | M 8 & M 10 |
| Width B [mm] | 18 |
| permitted load [N] | 980 |
Further information on RSF24
| Weight | 42 g / pcs |
| GTIN | 4006209794425 |
| Customs duty number | 73269098 |
| Manufacturer | Fischer |
Documents
- Catalogue page Atlas 9 (Page 429) (PDF)
- 3D CAD file (volume model) (Only for customers that are logged in) (STP)
- Data sheet (Print view)
*Threaded socket with two usable fastening threads
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
