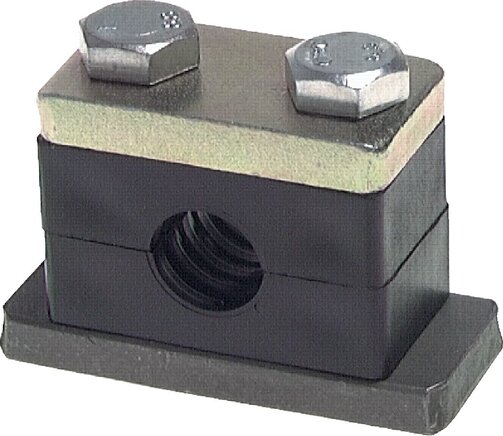

Pipe clamp 66mm, Size 5, heavy model series

Item number:

GR 566 SDP

All items of this group
€76.62 incl. VAT
pcs
Item description
Materials:
 Metal parts: Steel, bare / galvanised steel, screws: Galvanised steel, clip: Polypropylene
Properties
Ver­sion Plas­tic clip with weld­ing plate & cover plate
size Size 5, heavy model se­ries
Pipe di­am­e­ter (outer) [mm] 66
H [mm] 140
B [mm] 60
a1 [mm] 122,0
a2 [mm] 180
a3 [mm] 152
S [mm] 10
Further information on GR566SDP
Weight 2,3 kg / pcs
GTIN 4050571338893
Customs duty number 39174000
Manufacturer Hydac
Documents


All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
